Enhancing Android Checkout with Dynamic Callbacks in Google Pay

We are excited to bring Express checkout with Google Pay for Android native apps enabling developers to leverage users stored credentials (payment and address) from Google Wallet to streamline their checkout journeys. You will be able to implement familiar callbacks onPaymentDataChanged and onPaymentAuthorized that are already supported on Web now in your Android applications and streamline the checkout funnels. With these callbacks, you can update shipping options, taxes, and total prices dynamically as users interact with the Google Pay sheet, and handle authorization feedback without ever closing the sheet. This is available with play-services-wallet:20.0.0 and onwards.

Why use Dynamic Callbacks?

Dynamic callbacks enable a true “Express Checkout” experience. By moving the Google Pay button upstream to your Product Detail or Cart pages, you can provide the user’s shipping address, payment credentials, and contact details all within the Pay sheet.

Dynamic Shipping & Taxes: Update shipping methods and calculate tax on-the-fly based on the user’s selected address.
Upstream Positioning: Place the Pay button earlier in the funnel to drive higher conversion rates.
Inline Authorization: Handle transaction authorization and retries directly within the Google Pay interface.

Getting Started

To get started, update your Google Pay dependency in your build.gradle file:

com.google.android.gms:play-services-wallet:20.0.0

Kotlin

1. Implement the Callback Logic

Extend BasePaymentDataCallbacks to handle the specific events triggered during the checkout process.

import com.google.android.gms.wallet.PaymentData
import com.google.android.gms.wallet.callback.BasePaymentDataCallbacks
import com.google.android.gms.wallet.callback.IntermediatePaymentData
import com.google.android.gms.wallet.callback.OnCompleteListener
import com.google.android.gms.wallet.callback.PaymentAuthorizationResult
import com.google.android.gms.wallet.callback.PaymentDataRequestUpdate
import org.json.JSONObject

class MerchantPaymentDataCallbacks : BasePaymentDataCallbacks() {

    /**
     * Handles payment data changes in the payment sheet such as shipping address and shipping options.
     */

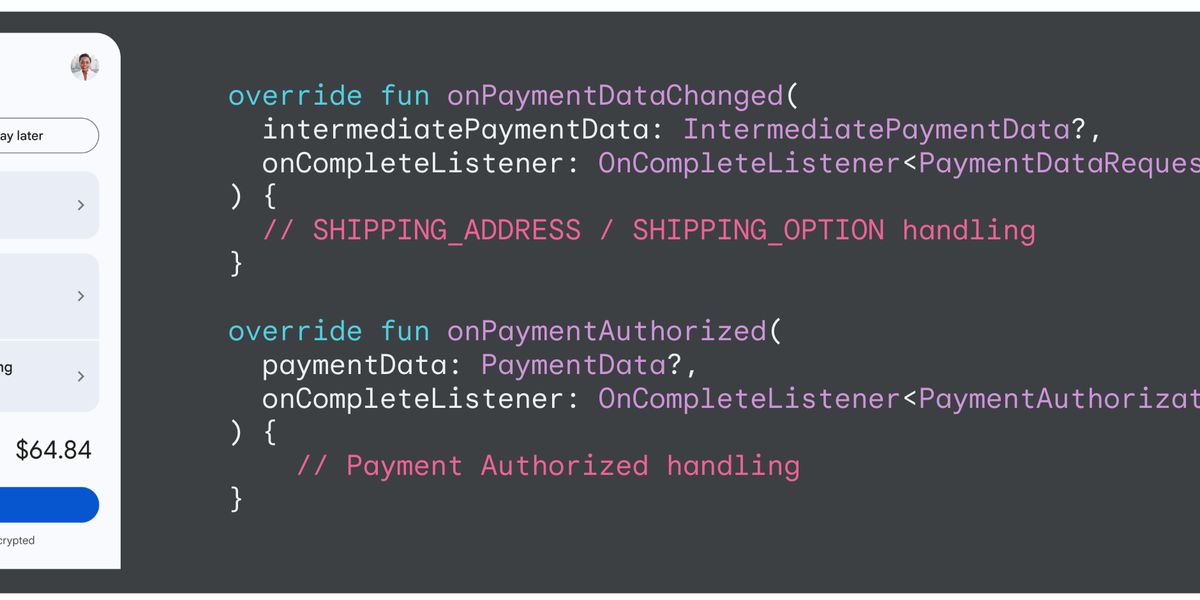

    override fun onPaymentDataChanged(
        request: IntermediatePaymentData,
        onCompleteListener: OnCompleteListener<PaymentDataRequestUpdate>
    ) {

        // Example: Process the request and return updates
        // In a real application, you would likely make a network request to your server
        // to get updated shipping options and cart details based on the new address.

        val shippingAddress = request.shippingAddress
        val shippingOptionData = request.shippingOptionData

        // Construct the response object
        val responseJson = JSONObject().apply {
            // Example: Add new shipping options based on the address
            put("newShippingOptionParameters", JSONObject().apply {
                put("defaultSelectedOptionId", "shipping-001")
                put("shippingOptions", JSONObject().apply {
                    put("id", "shipping-001")
                    put("label", "$0.00: Free shipping")
                    put("description", "Free shipping on all orders")
                })
            })

            // Example: Update transaction info
            put("newTransactionInfo", JSONObject().apply {
                put("totalPriceStatus", "FINAL")
                put("totalPrice", "12.34")
                put("currencyCode", "USD")
            })
        }

        val response = PaymentDataRequestUpdate.fromJson(responseJson.toString())
        onCompleteListener.complete(response)
    }

    /**
     * Called when a payment is authorized in the payment sheet.
     */
    override fun onPaymentAuthorized(
        request: PaymentData,
        onCompleteListener: OnCompleteListener<PaymentAuthorizationResult>
    ) {
        // Log the payment data for debugging
        println("onPaymentAuthorized called with PaymentData: ${request.toJson()}")

        // Example: Process the payment authorization
        // In a real application, you would send the payment token and other data
        // to your server to be processed by your payment service provider.

        // Construct the response object
        val responseJson = JSONObject().apply {
            put("transactionState", "SUCCESS") // Or "ERROR"
            // Optionally include an error message
            // put("error", JSONObject().apply {
            //     put("reason", "PAYMENT_DATA_INVALID")
            //     put("intent", "PAYMENT_AUTHORIZATION")
            //     put("message", "Invalid payment method.")
            // })
        }

        val response = PaymentAuthorizationResult.fromJson(responseJson.toString())
        onCompleteListener.complete(response)
    }
}

Kotlin

2. Host the Callback Service

Implement a service that extends BasePaymentDataCallbacksService to provide an instance of your callbacks.

import androidx.annotation.NonNull
import com.google.android.gms.wallet.callback.BasePaymentDataCallbacks
import com.google.android.gms.wallet.callback.BasePaymentDataCallbacksService

/**
 * Service class which hosts the payment data callbacks.
 */
class MerchantPaymentDataCallbacksService : BasePaymentDataCallbacksService() {

    @NonNull
    override fun createPaymentDataCallbacks(): BasePaymentDataCallbacks {
        return MerchantPaymentDataCallbacks()
    }
}

Kotlin

3. Update the Android Manifest

You must declare your service and protect it with the BIND_PAYMENTS_CALLBACK_SERVICE permission.

<service
    android:name=".service.MerchantPaymentDataCallbacksService"
    android:permission="com.google.android.gms.permission.BIND_PAYMENTS_CALLBACK_SERVICE"
    android:exported="true">
    <intent-filter>
        <action android:name="com.google.android.gms.wallet.callback.PAYMENT_DATA_CALLBACKS" />
    </intent-filter>
</service>

XML

4. Configure the Payment Request

Finally, include the callbackIntents in your PaymentDataRequest JSON object to tell Google Pay which events you want to listen for.

{
  "apiVersion": 2,
  "apiVersionMinor": 0,
  ...
  "callbackIntents": [
    "PAYMENT_AUTHORIZATION",
    "SHIPPING_ADDRESS",
    "SHIPPING_OPTION"
  ]
}

JSON

Takeaways

Implementing dynamic callbacks on Android allows you to:

Reduce Friction: Enable a 1-click experience by moving checkout upstream.
Increase Accuracy: Provide real-time shipping and tax pricing.
Improve Authorization: Handle success or failure feedback within the Pay sheet to increase conversion.

Dynamic callbacks bring the Google Pay developer platform on Android to parity with its capabilities on the web. For a full implementation guide, see the updated developer documentation: goo.gle/pay-android-dpu
